Accurate Heat Pump Load Calculation Guide | Manual J & EnergyPlus Methods

  • Writer: bpatrick247
    bpatrick247
  • Oct 3
  • 3 min read

Heat Pump Load Calculations for Homes with Varying Insulation

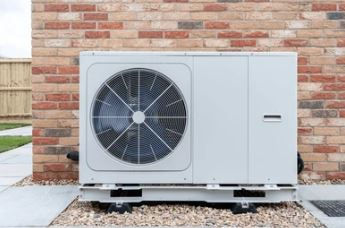

heat pump load calculation

Accurate heat pump load calculation is the foundation of residential HVAC design. Whether you’re a contractor, engineer, or homeowner, getting this right ensures your heat pump delivers comfort, efficiency, and long-term performance. The challenge becomes greater when insulation levels vary throughout a home, making precise residential heat pump sizing even more critical.


Why Insulation Levels Affect HVAC Load Calculation

Insulation levels have a direct impact on heating and cooling load calculations. A well-insulated attic, for example, reduces heat loss, while an uninsulated basement can dramatically increase it. Uneven insulation can also create issues with thermal bridging and infiltration, two factors that can distort load calculations if ignored.


1. Dynamic Whole-Building Simulation with EnergyPlus (Most Accurate)

One of the most accurate ways to size a heat pump is through EnergyPlus load simulation or similar dynamic modeling tools such as TRNSYS or IES. These programs calculate hour-by-hour loads, accounting for:

  • Wall and roof insulation levels

  • Window performance

  • Thermal mass (brick, concrete, stone)

  • Solar gains and shading

  • Occupancy and equipment use

Best use case: high-performance homes, complex insulation conditions, or projects requiring detailed energy forecasting.


2. Manual J Heat Pump Sizing (Residential Standard)

The ACCA Manual J load calculation method is the gold standard in the U.S. for residential heat pump sizing. It balances detail with practicality, making it ideal for most contractors and homeowners.

  • Strengths: Accepted by building codes, utilities, and manufacturers.

  • Limitations: Simplified assumptions can under- or over-estimate loads if insulation or infiltration values are entered inaccurately.

Tip: Pair Manual J heat pump sizing with blower door test results for more accurate infiltration estimates.


3. Steady-State UA Method for HVAC Load Calculation

The U × A × ΔT method provides a simplified approach to HVAC load calculation methods. It calculates conductive heat transfer through walls, windows, and floors.

  • Strengths: Useful for feasibility studies and quick checks.

  • Limitations: Ignores solar timing, internal gains, and thermal mass, making it less accurate for homes with uneven insulation.


4. Degree-Day Analysis for Heating Loads

For existing homes, degree-day analysis for heating or regression modeling using utility bills can reveal real-world heat loss. Unlike theoretical models, this approach reflects actual airtightness, insulation effectiveness, and occupant behavior.

  • Strengths: Highly reliable when calibrated with clean energy data.

  • Limitations: Lacks room-by-room breakdowns and requires historical data.


5. Rules of Thumb: The Least Reliable Heat Pump Load Method

Some contractors still rely on simple “BTU per square foot” rules. While quick, these residential HVAC design shortcuts are risky. They ignore climate, infiltration, and insulation quality — often leading to oversized or undersized heat pumps.


Special Considerations for Varying Insulation

When insulation levels differ across a home, keep these factors in mind:

  • Thermal Bridging in Insulation → framing and rim joists bypass insulation effectiveness.

  • Air Infiltration and Blower Door Testing → tighter homes require mechanical ventilation; leaky homes see much higher loads.

  • Heat Pump Performance at Low Temperatures → always check manufacturer capacity curves, not just rated values.

  • Basements and Slabs → ground coupling requires special load calculation methods.


Recommended Workflow for Residential Heat Pump Sizing

  1. Collect accurate data: R-values, window specs, infiltration rates, design temperatures.

  2. Run a Manual J heat pump sizing calculation.

  3. For complex homes, verify results with EnergyPlus load simulation.

  4. Use degree-day analysis for heating to validate against utility bills when available.

  5. Compare calculated loads with heat pump performance at low temperatures from manufacturer data.


Conclusion

For the most accurate heat pump load calculation, a whole-building simulation using EnergyPlus is the best option. For standard projects, Manual J heat pump sizing remains the industry benchmark. For existing homes, degree-day analysis for heating provides real-world validation.


By carefully considering insulation, infiltration, and HVAC load calculation methods, homeowners and contractors can ensure the selection of the right heat pump for optimal comfort, efficiency, and long-term savings.


Sources

  • ACCA. Manual J Residential Load Calculation, 8th Edition.

  • ASHRAE. Fundamentals Handbook – Heat Balance Method.

  • U.S. Department of Energy. EnergyPlus Energy Simulation Software.

  • University of Minnesota Extension. Understanding Degree-Day Analysis for Home Heating.

  • International Energy Conservation Code (IECC) resources.
